The FLUORECARE™ Reader is a compact point-of-care test system for fluorescence detection to determine different analyses in whole blood, plasma and serum.
The high-performance portable immunoassay system consists of the laser fluorescence reader FLUORECARE™ and the test cartridge adapted to the specific parameter. The Point-of-Care analysis system is characterized by its wide-ranging parameter menu and provides professionals with high-quality medical information with the user friendly handling.
The FLUORECARE™ system is based on fluorescence immunoassay technology. This allows the quantification of single or multiple analytes at the same time by measuring laser-induced epifluorescence. The test is performed on a cartridge with specific parameters.
The tests are based on immunochromatographic technology. The concentration of different analytes in human serum or plasma is detected. The fluorescence-labelling antibodies are located in the sample chamber of the specific test cartridge. The addition of human serum or plasma forms the parameter-dependent antibody complex. The applied sample passes the nitrocellulose matrix of the test strip due to the capillary effect. With a higher concentration of analytes, the aggregation of the complex on the detection line is increased.
Specifications FLUORECARE™
| Measuring Channel: | 1 |
| Measuring Method: | fluorescence immunochromatographic |
| Sample Type: | Whole Blood, Plasma and Serum |
| Sample Volume: | 70 µl |
| Reagent: | closed System |
| Storage: | 2 - 30°C (no additional cooling required) |
| Calibration: | automatically with Chipcard |
| Interface: | 2 x RS232 COM Port, 4 x USB, 1 x LAN |
| Data Output: | colour display and internal printer |
| Service: | maintenance free |
| Languages: | german, english |
| Display: | 3,5" 24 bit true color LCD touchscreen |
| Power supply voltage: | Wide range power supply 100 - 240 Volt, 50 - 60 Hz |
| Operating voltage: | 12 Volt- |
| Electric power: | 20 VA |
| Width: | 200 mm |
| Height: | 144 mm |
| Depth: | 346 mm |
| Weight: | 3,0 kg |

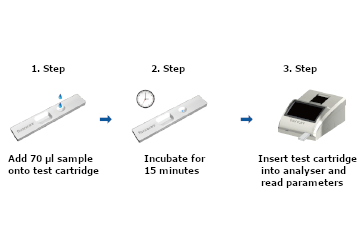

Workflow using the example of an HbA1c test
Download
2 sided product brochure:
Fluorescence Reader FLUORECARE
